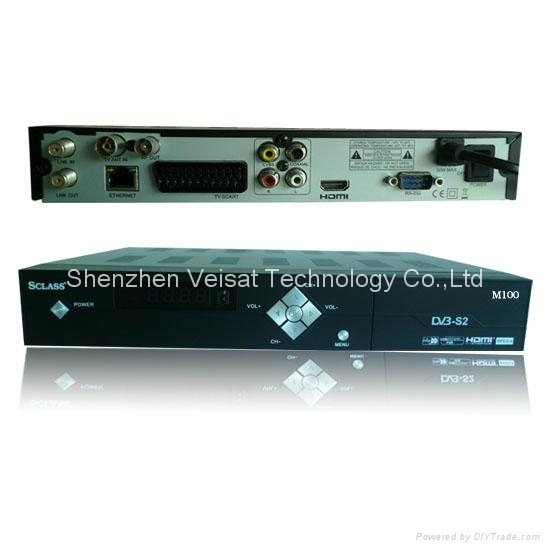

| DVB-S2 internet sharing mpeg-4 |
|
|
| Model No.︰ | M100 super |
| Brand Name︰ | sclass |
| Country of Origin︰ | China |
| Unit Price︰ | USD $ 40 / pc |
| Minimum Order︰ | 1000 pc |
|
|
|
|
|
| Specifications︰ | Key Feature
Free To Air & DVB-S2 Compliant
MPEG 2/4, H.264, For high definition video input and output
(support 720Pp, 1080i)
Easy-To-Use Graphical User Interface
Multi languages OSD
With twin protocol, can connect with dongle
SYSTEM
Main CPU: M3602, 32-bit superalar RISC CPU 396MHZ
Demodulation QPSK, 8PSK
Main Mermory: 256Mbit * 4
Flash Mermory: 64Mbit
Pan Scan, Letterbox
7days EPG picture in praphics
Subtitle, Teletext
Parental lock
Last channel momory,Favorite channel programmable
S/W Upgrade via USB port
Navigation 7 Keys for menu ok, channel up/down, volume up/down/standby
Terrestrial input signal
Input Frequency:950MHz to 2150MHz
Transmssion System: DVB-S2 COFDM
Channel Bandwidth: 7MHZ/8MHZ
Input Signal Level:-80dBm to -20dBm
Anter Input:75Ohm Female IEC-Connector
OFDM Spectrum Mode:2K/8K,Hierarchical
Modulation Modes:1/32, 1/16, 1/8, 1/4Active Symbol Duration
FEC Modes: Rate 1/2, 2/3, 3/4, 5/6, 7/8
Audio Decoding
MPEG-1/2 layerI/II,AC3/HE-AAC/AC3+
Frequency Response: 20Hz/20KHz
Analog Audio Output:Stereo R/L
Digital Audio Output: HDMI/coxial
Video Decoding
AVC,MPEG2/4,H.264 MP@ML/HL
Display Aspect Ratio: 16:9/4:3
PAL/NTSC video output support
HD Digital Video Output: HDMI output support 576i,576p,720p,1080i
HD Analog Video Output: YPbPr output support 576i,576p,720p,1080i
SD Video Output:Composite Video(CVBS)
Input and output
RF input & loop through
USB 2.0 host interface
HDMI
|
| Advantages︰ | Free To Air & DVB-S2 Compliant
MPEG 2/4, H.264, For high definition video input and output
(support 720Pp, 1080i)
Easy-To-Use Graphical User Interface
Multi languages OSD
With twin protocol, can connect with dongle
|
| Export Markets︰ | mid-east ,africa |
|
|
